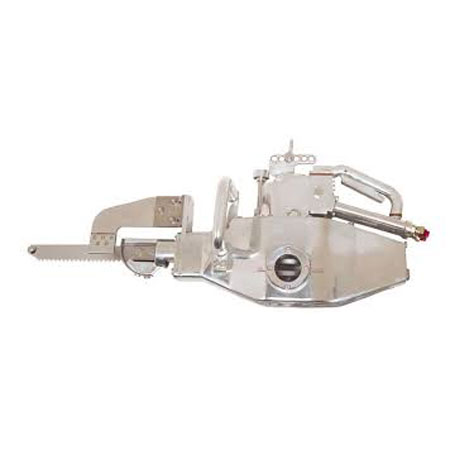

The Jarvis Model MG-1B — hydraulic powered brisket saw for beef.

•The powerful, high-performance MG-1B cuts through all beef briskets quickly and easily.
•Cuts fat cattle briskets in 3 seconds per carcass.
•Small and maneuverable for optimum handling.
•A balanced drive system makes the MG-1B smooth and quiet for less operator fatigue
•Minimal maintenance due to the oil bath lubricated drive and no electrical components.
•Instant stop blade.
•Meets international requirements for safety and hygiene.

Model MG-1B
Specifications:
Drive		Hydraulic
Cutting Cycle Time		3 sec / carcass
Control Handle
Single Trigger	Hydraulic
Blade Lengths	9.5 in	241 mm
10.5 in		267 mm
11.5 in		292 mm
13.0 in		330 mm
Overall Length
(with 9.5 in / 241 mm blade)	13.0 in	330 mm
Weight	41 lbs	18.6 kg
Hydraulic Power Unit
Motor Power	5 hp	3728 W
Operating Voltage	460 / 230 V, 3 phase, 60 Hz
other voltages and 50 Hz available
Hose Length	16 ft	5 m
Oil Capacity	20 gal	76 L
Overall Dimensions (l x w x h)	28 x 20 27.5 in
	711 x 508 x 699 mm
Weight	59 lbs	26.8 kg
