Model 500HC Hock Cutter

Mô tả
Đánh giá (0)

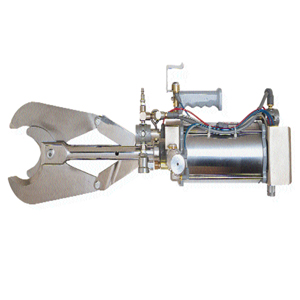

The Jarvis Model 500HC -pneumatically powered hock cutter for hind beef hocks and sow hocks.

•The 500HC quickly and cleanly cuts rear beef hocks through the joint, and is an effective hock cutter for sows.
•Inexpensive – no hydraulic power unit.
•Double acting air cylinder for reduced maintenance – no springs.
•Lightweight for easy handling.
•Anti-tie down controls for operator safety.

Model 500HC
Specifications
Operating Pressure	90 – 120 psi	6.2 – 8.3 bar
Air Consumption (per cycle) @ 90 psi	1.0 ft³	28.3 L
Cutting Force @ 90 psi	2400 lbf	10.7 kN
Cutting Cycle Time @ 90 psi		1.5 second
Cutting Diameter (max.)	3.5 in	89 mm
Control Handles	Pneumatic Dual Anti-tie Down
Blade Opening
At Tips	3.7 in	94 mm
Widest	4.5 in	114 mm
Overall Length	36 in	914 mm
Weight	24.5 lbs	11.1 kg
